SF 450 - Flow Packing
SF 450 - Flow Packing

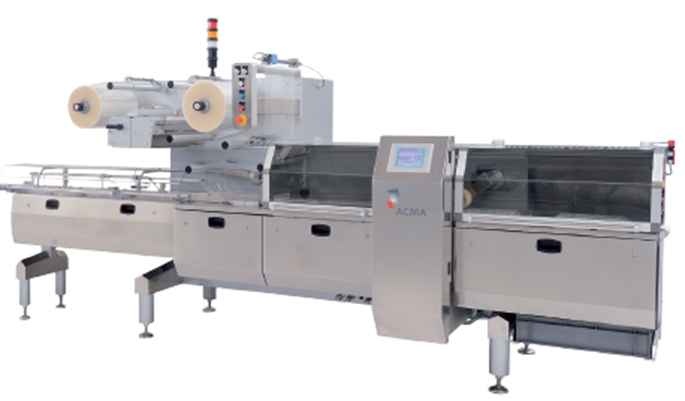

SF 450

Mid speed horizontal flow wrapper for soap products (450 ppm)

Basic Info

  • TECHNOLOGY: Flow Packing
  • INDUSTRY: Home Care, Personal Care
  • SEGMENT: Laundry Care, Soap Bars
CONTACT US
AFTER SALES SERVICE

Detailed Info

SHOW MORE
Footprint
Machine depth (mm)1250
Machine height (mm)1700
Machine length (mm)3500
Machine weight (kg)1700
Performance
Film speed (m/min)600
Operating modeContinuous
Product changeover5 - 25 mins
Size changeover5 - 25 mins
Max speed (m/min)600
Packaging features
Packaging materialHeat sealable material
Packaging TypePillow Pack
Packaging range
Packaging material width (mm)400
Max reel diameter (mm)600
Product range
Max product height (mm)100
Min product height (mm)5
Max product length (mm)350
Min product length (mm)30
Max product width (mm)250
Min product width (mm)15
Packagin features
Max reel core diameter (mm)76
Min reel core diameter (mm)70
