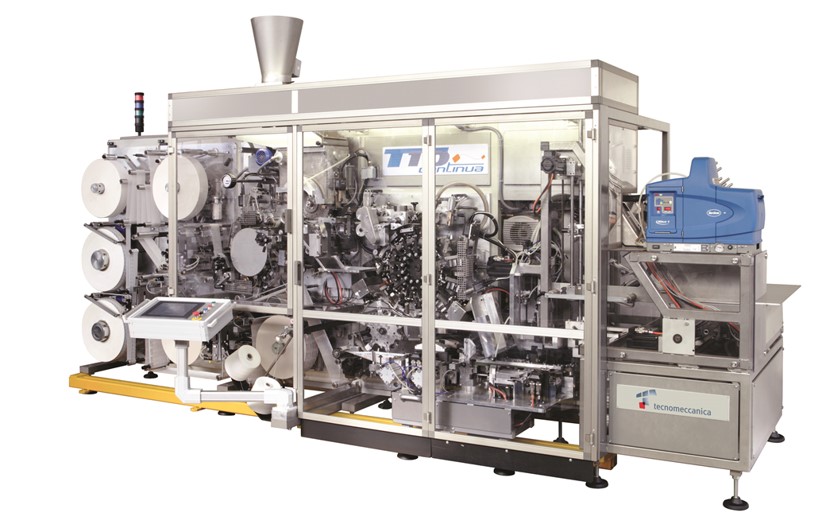

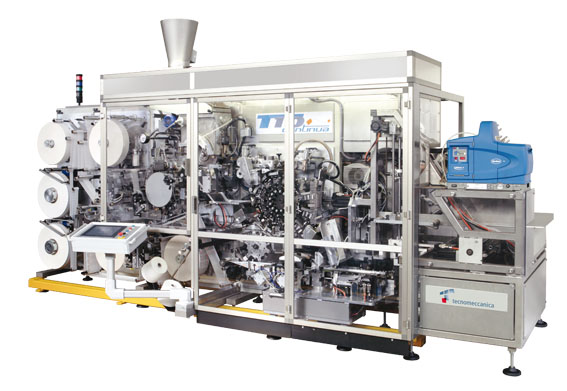

TE 500

Double chamber tea bags packer with sealed filter paper, envelope and cartoner (500 ppm)

Basic Info

  • TECHNOLOGY: Tea Bags Packing
  • INDUSTRY: Tea & Coffee
  • SEGMENT: Tea

Detailed Info

Box size range
Max box height (mm)80
Min box height (mm)60
Max box length (mm)205
Min box length (mm)80
Max box width (mm)215
Max box width (mm)45
Box size changeover45 min
Operating modeContinuous
Machine depth (mm)1777
Machine height (mm)2202
Machine length (mm)5546
Machine weight (kg)5000
Envelope size range
Max envelope height (mm)83
Min envelope height (mm)72
Max envelope width (mm)66
Min envelope width (mm)60
Packaging range
Max pack height (mm)63
Min pack height (mm)58
Max pack width (mm)45
Min pack width (mm)40
Packaging features
Pack typeDouble chamber sealed
Packaging typeBox - Wrap
Regulatory requirements
Safety Regulations2014/30/UE, 2006/42/EC, 2014/35/UE
Tag size range
Max tag height (mm)32
Min tag height (mm)28
Max tag width (mm)24
Min tag width (mm)24
Value proposition
Value propositionBreakthrough innovation
