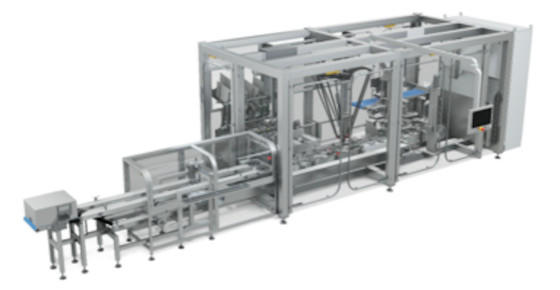

CA-TLF
Top Load Cartoner for three side sealing cartons
Detailed Info
- Footprint
- Machine depth (mm)2500
- Machine height (mm)2250
- Machine length (mm)6300
- Machine weight (kg)4000
- Other technical features
- Insertion modeTop Load
- Performance
- Operating modeIntermittent
- Size changeover30 Min.
- More Information
- Other infoAll-in-one, fully automatic and modular top load cartoner to form carton from flat blanks, robotic loading and if needed, box closing. The machine can be configured from 1 to 4 lanes per module to match different production speeds up to 120 cpm.
- Packaging range
- Max pack height (mm)150
- Min pack height (mm)30
- Max pack length (mm)900
- Min pack length (mm)45
- Max pack width (mm)240
- Min pack width (mm)45
- Packaging features
- Packaging closingHot Melt
- Packaging materialFiberboard and Corrugated
- Packaging TypeThree side sealing
- Packaging typeCarton Box
- Regulatory requirements
- Safety Regulations2006/42/EC - 2014/30/UE
